| Brand Name: | ONN |
| Model Number: | ONN-M4B-50 |
| MOQ: | 1 |
| Price: | $6.8-9 |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |

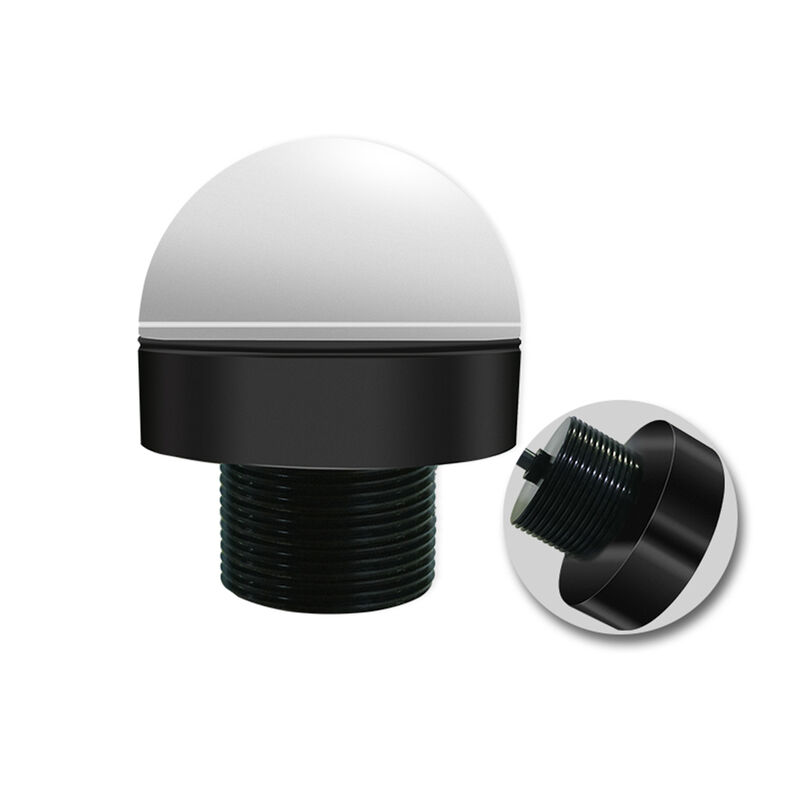

Compact mini hemispheric design frees up machine panel installation space
M30 standard thread nut allows simple single-hole mounting, no bracket needed
Dual IP ratings: IP65 anti-splash silent version for coolant workshops; IP30 buzzer version for assembly lines
Optional 85dB loud buzzer gives sound-light dual fault alerts in noisy factories
PNP & NPN universal plus contact dual wiring, compatible with all PLC brands
Two outlet choices: ordinary wire or M12 aviation connector
Integrated RYG three-color dome provides 360° uniform light with no blind spots
Aluminum + anti-yellow PC construction for long-term anti-aging performance
Parameters
| Spec Item | Details |
|---|---|
| Model | ONN-M4B-50 |
| Size | Φ50 hemispheric dome |
| Mount | M30*P1.5 thread nut |
| IP Grade | Silent:IP65 / Buzzer:IP30 |
| Voltage | DC12V / DC24V |
| Wiring | PNP/NPN / Contact / M12 connector optional |
| Function | Steady / Flash, 85dB buzzer optional |
| Color | RYG single layer integrated |
| Warranty | 2 Years |
