| Brand Name: | ONLION |
| Model Number: | ONN-M9D |
| MOQ: | 1 |
| Price: | $16 |
| Delivery Time: | 5-8 working day |
| Payment Terms: | T/T |

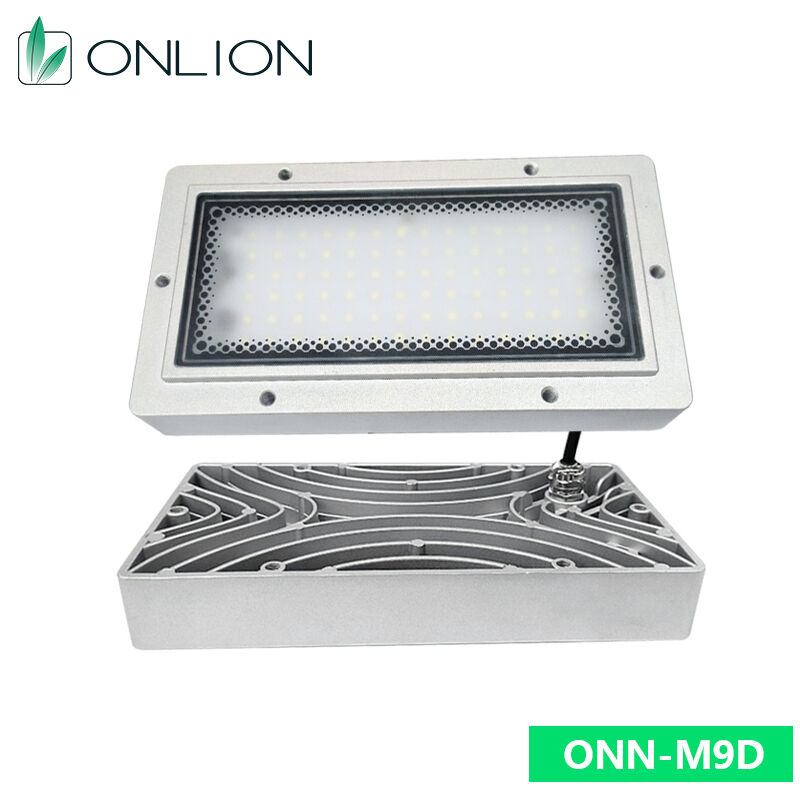

ONN-M9D LED Machine Work Light IP67 Waterproof Aluminium Alloy for CNC Machine
Product Overview
The ONN-M9D is a recess-mounted IP67 LED machine light built for harsh industrial environments. Featuring an anodized aluminum housing and tempered glass with milky cover, it delivers soft, low-glare illumination. High-quality LED chips provide 100lm/W with 110° wide beam. 12W, DC24V. Three CCT options (2800-6500K). 50,000hr lifetime. CE/RoHS. 2-year warranty.
Quick Detail
IP67 Waterproof: Resists high-pressure wash, coolants, detergents
Recess Mounting: Space-saving, integrates flush with equipment
Soft Light: Milky cover reduces glare and eye strain
Durable Build: Anodized aluminum + tempered glass
Voltage: DC24V | Power: 12W | Length: 186mm
Efficacy: 100lm/W | CRI: >80 | Beam: 110°
CCT: 2800-3200K / 4000-4500K / 6000-6500K
Lifetime: 50,000 hours | Warranty: 2 years
Specifications
| Parameter | Specification |
|---|---|
| Model | ONN-M9D |
| Power | 12W |
| Length | 186mm |
| Voltage | DC24V |
| Efficacy | 100lm/W |
| CRI | >80 |
| Beam Angle | 110° |
| IP Rating | IP67 |
| Material | Aluminum + Tempered Glass |
| Cover | Milky (low glare) |
| Mounting | Recess / Screw fixing |
| Lifetime | 50,000 hrs |
| Cert | CE, RoHS |
Applications
CNC/EDM/engraving machines, assembly stations, laboratories, equipment interiors.
Package Info
| Item | Detail |
|---|---|
| Qty/Carton | 8pcs |
| Carton Size | 186*100*44mm |
| N.W. | 5.04kg |
| G.W. | 6.2kg |
