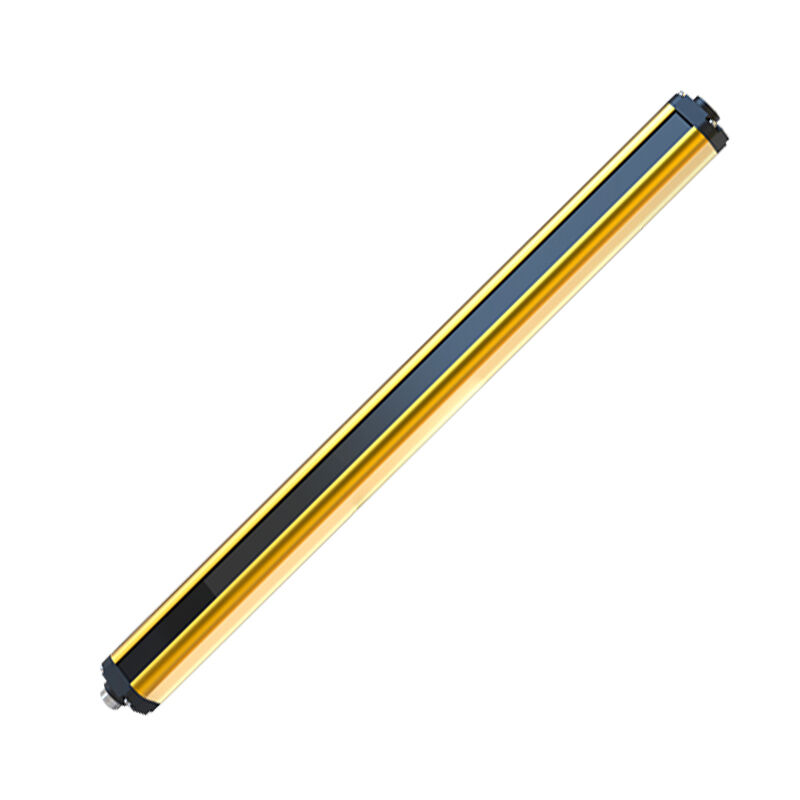

ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output

Name: ONN-GS-D Industrial Safety Curtain IP65 Waterproof PNP / NPN Output
Brand: Shenzhen ONN Semi-Conductor Lighting Co., Ltd.
Price: Negotiable USD
Availability: InStock

Brand Name:	ONLION
MOQ:	2

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Features:

Relative Expression

Series:

Safety Light Curtains

Mounting Type:

Bracket Fixed Installation

Description:

Infrared Safety Protection Device, ONN-GS-D

Manufacturer Part Number:

GS-D

Type:

Safety Light Curtains

Usage:

Industrial Equipment

Theory:

Infrared Radiation

Output:

PNP / NPN

Product Name:

Safety Light Curtain

Enclosure Material:

Aluminum Alloy

Resolution:

15mm,25mm,45mm

Power Supply:

DC10V-30V

Wave Length:

940nm

Capacity:

<5W

Anti-optical Interference:

10000 Lux ( Angle>5" )

Housing Cross-section:

35*27mm

Storage Temperature:

-30°C-70°C (with Freezing)

Enclosure Rating:

IP65

Highlight:

Industrial Safety Curtain IP65

Industrial Safety Curtain Waterproof

Product Description

ONN-GS-D IP65 Waterproof Curtain for Industrial Safety Manufacturers Direct Selling

Products Description

1. Aluminum alloy, tempered glass material.2. Various non-standard requirements are quickly customized.
3. With security self-check mutual check function.
4. The maximum range of the beam can reach 30m.
5. Using line synchronization technology, anti-light interference ability is strong.
6. The whole lamp is sealed, the protection grade is IP65, the life is 50000H.
7. A variety of bracket installation options, convenient and fast.

Spectification

Beam space	10mm,20mm,40mm
Protective height	Protective height=(N-1)*beam gap, N is beam quantity.
Sensing distance	0.1~0.5m,0.1~2m,0.1~5m
Sensing method	Through-beam type
Synchronization	Wire synchronization
Ambient operating temperature	-10°C~55°C (with freezing)
Resolution	15mm,25mm,45mm
Response time	Response time=(N*0.1ms)+0.4ms ( N is beams qty )

Application

Company Information

Shenzhen ONN Semi-conductor Lighting Co., LTD. established in 2010 and located in Shenzhen, as a National high-tech enterprise, we design, manufacture and supply L E D Machine Light, Signal Tower Light and L E D Freezer Light to global industrial customers.

Certifications

Customers

FAQ

Q: How to order our product ? A: 1). Please tell us the model and quantity and other request you need. 2). We make the PI for you. 3). After you confirm the PI, we arrange the order for you after receiving your payment. 4). After the goods finished, we send the goods out to you and tell you the tracking number. 5). We will track your goods until you receive the goods. Q: Do you have a picture book of all the products? A: Yes,we have. Q: What's your warranty ? A: Two years. Thank you & Now please send your kindly inquiry
