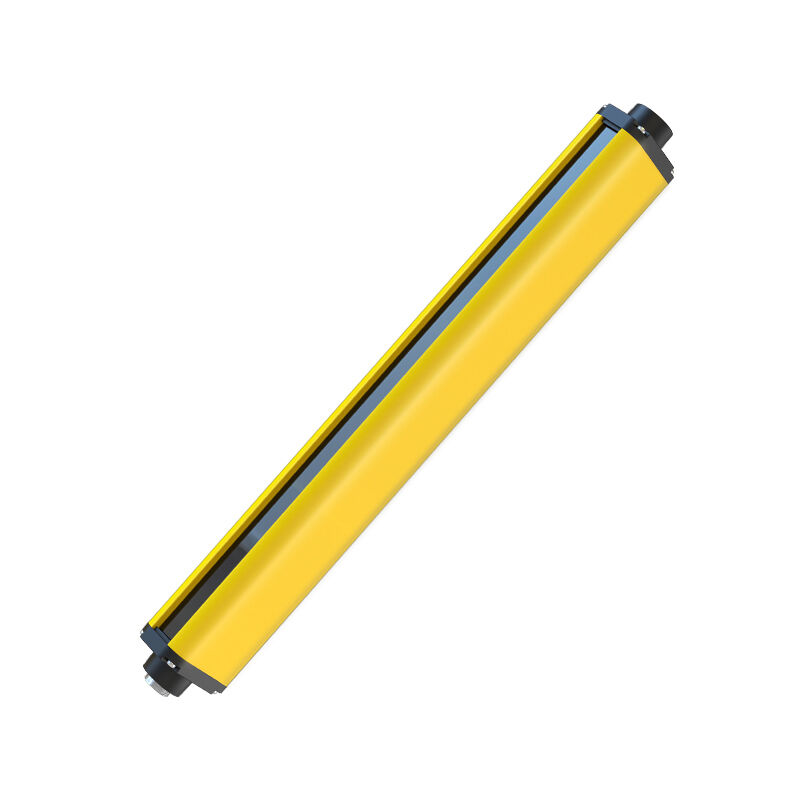

Optical Security Light Curtain Sensor IP65 Customized Phototransistor Photoelectric Sensor

Brand Name:	ONLION
MOQ:	2

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Features:

Relative Expression

Series:

Safety Light Curtains

Mounting Type:

Bracket Fixed Installation

Description:

Infrared Safety Protection Device, ONN-GS-T

Manufacturer Part Number:

GS-T

Type:

Safety Light Curtains

Usage:

Industrial Equipment

Theory:

Infrared Radiation

Output:

PNP / NPN

Power Source:

DC10~30V

Light Source:

940nm

Anti-interference:

10000Lux

Light Curtain Form:

Relative Expression

Power:

<5W

IP Rating:

IP65

Section Size:

35*50mm

Working Temperature:

-10℃~55℃

Color:

Yellow

Material:

Aluminum Alloy

Manufacturing Date Code:

2023

Highlight:

Optical Security Light Curtain Sensor

Security Light Curtain Sensor IP65

Product Description

ONN-GS-T Hot Selling IP65 Grating Security Protection Infrared Protection Economic Safety Light Curtain Sensor

Product Description

1. Aluminum alloy, tempered glass material.

2. Various non-standard requirements are quickly customized.

3. With security self-check mutual check function.

4. The maximum range of the beam can reach 30m.

5. Using line synchronization technology, anti-light interference ability is strong.

6. The whole lamp is sealed, the protection grade is IP65, the life is 50000H.

7. A variety of bracket installation options, convenient and fast.

Main application: automation equipment, injection molding machines, detection and measurement equipment, etc.

Specification

Model No.	ONN-GS-T
Power source	DC10~30V
Light source	940nm
Anti-interference	10000Lux
Light curtain form	Relative expression
Power	<5W
IP rating	IP65
Section size	35*50mm
Working temperature	-10~55℃
Color	Yellow
Material	Aluminum alloy

Ordering Code

ONN-GS-T 08 10 -N -L -6
1 2 3 4 5 6
1.Model No.	GS-T
2.Number of optical axes	04, 06, 08, 10, 12,……
3.Optical axis distance	10: 10mm 20:20mm 40:40mm
4.Connect type	N: NPN P:PNP
5.Mounting	L: L side bracket
6.Shooting distance	6: 0.1~6m 30: 0.1~30m

Product size drawing
