| Brand Name: | ONN |
| Model Number: | M4S-F |
| MOQ: | 1 |
| Price: | $16-20 |
| Delivery Time: | 5-12 working days |
| Payment Terms: | T/T |

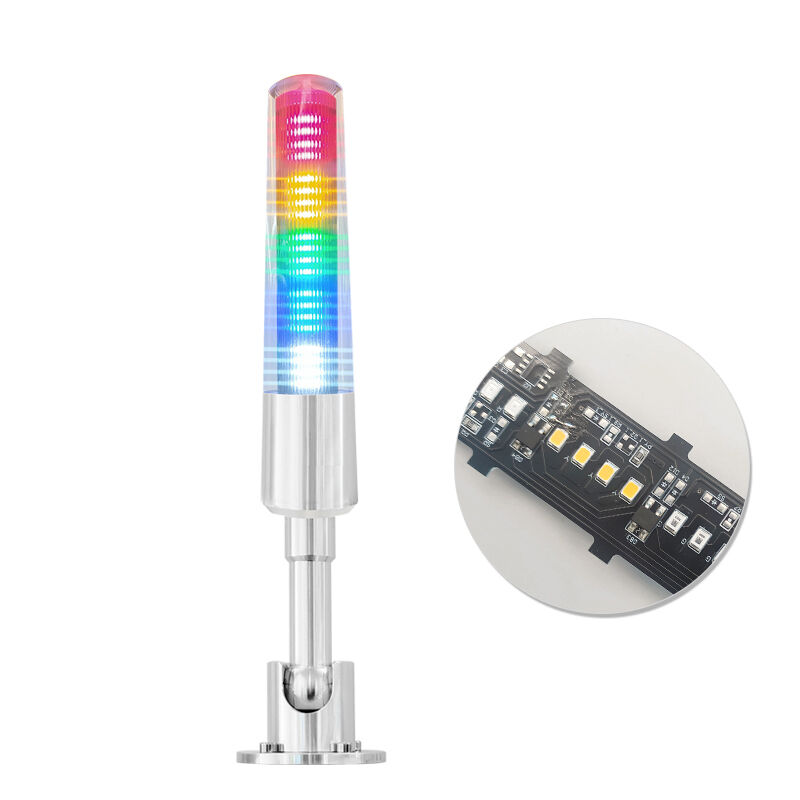

ONN-M4S-F 12v/24v/220v Rotatable Base Warning Lamp Automatic Equipment
Product Overview
The ONN M4S-F is a compact 5-color signal tower with a collapsible base and durable metal construction. Supports steady, flash, and buzzer alerts. Interfaces with PLC via PNP/NPN or traditional relay contacts. IP50-rated with 50,000-hour LED lifespan.
Primary Specifications
| Item | Detail |
|---|---|
| Layers | 5 (R/Y/G/B/W) |
| Power | 6W max |
| Voltage | 12V DC / 24V DC / 220V AC |
| Control | PNP/NPN or dry contact |
| Mount | Folding base, screw-fixed |
| Body | Aluminum + PC lens |
| Buzzer | 95dB integrated |
| Temp Range | -20℃ ~ +45℃ |
| Protection | IP50 |
| Cable | 0.5m |
Key Advantages
Foldable bracket – saves storage space and simplifies machine relocation
Swivel head – rotates 360° for optimal signal visibility
Anti-yellow lenses – maintain brightness over years of use
Audible alert – cuts through ambient noise with 95dB output
Universal compatibility – works with both transistor and relay controls
Long-life LEDs – 50,000-hour rated operation
Quick installation – pre-wired cable and screw mounting
Operating Modes
Steady illumination only
Steady + buzzer
Red flashing only
Red flashing + buzzer
All-color flashing
All-color flashing + buzzer
Typical Use Cases
CNC machines, SMT equipment, assembly stations, packaging lines, automated conveyors, and production workstations.
