| Brand Name: | ONLION |
| Model Number: | ONN M4 |
| MOQ: | 1 |
| Price: | $14-22 |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |

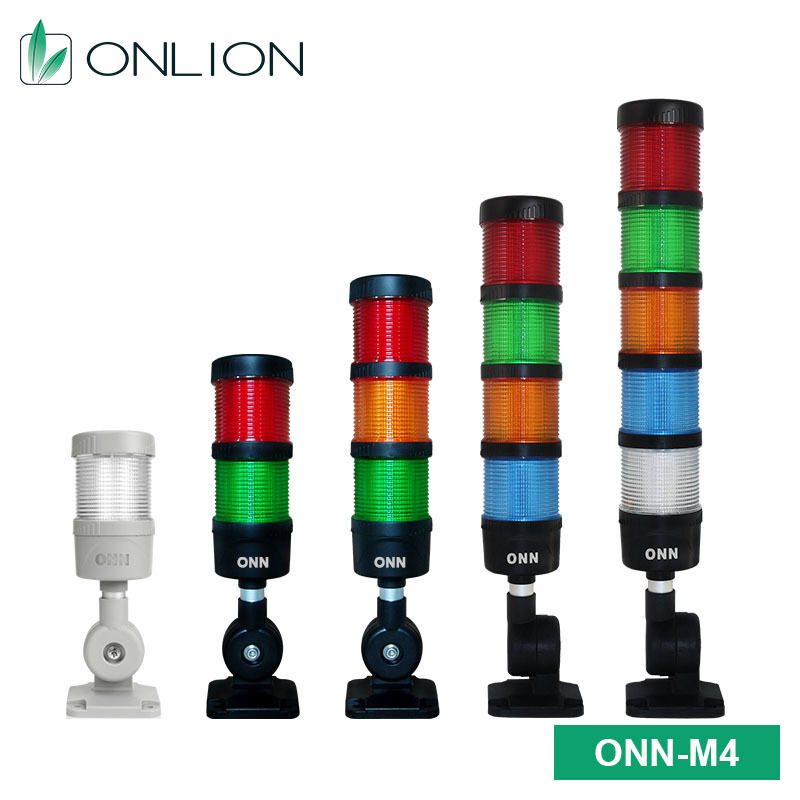

ONN-M4 Wide Voltage DC12-36V Tower Light RYG Foldable Signal Tower Light with >90dB Buzzer Steady Flash for CNC Machine
Product Overview
ONN-M4 DC12-36V wide voltage multi-layer tower light diameter 60/70mm 3 mount fold/L/pole bracket PNP NPN contact dual wiring >90dB buzzer IP40 ABS PC blue backlit custom logo CE RoHS FCC 50000h 2-year warranty for CNC SMT automatic equipment sample OEM available.
Quick Detail
Optical Performance: 1.8W per color with 60-80mA drive current; PC diffuser lens ensures wide-angle, uniform light dispersion
Acoustic Feedback: Optional piezoelectric buzzer delivers >85dB at 1m, selectable with steady or flashing light modes
Electrical Interface: Accepts DC12V, DC24V, or AC100-240V (50/60Hz); supports both dry contact (relay) and solid-state PNP/NPN sinking/sourcing inputs
Environmental Protection: Standard IP53 rating for indoor use; IP66 rating available for washdown environments (buzzer-deleted configuration)
Thermal Management: ABS housing with optimized heat dissipation; rated operating range -20℃ to +45℃
Mechanical Installation: Three base variants—Foldable (space-saving), Pole & Plate (elevated visibility), and L-Bracket (wall/surface mount)
Specifications
| Spec Item | Details |
|---|---|
| Model | ONN-M4 DC12-36V Wide Voltage |
| Layers | 1/2/3 RYG optional |
| Tube Dia | Φ60 / Φ70 |
| Voltage | DC12 ~ 36V Universal |
| Mount | Fold / Pole-plate / L bracket |
| Wiring | PNP&NPN / Contact relay |
| Buzzer | ＞90dB optional |
| IP Grade | IP40 |
| Custom | Blue backlit logo |
| Warranty | 2 Years |
Applications
Precision CNC machining centers
Automated SMT pick-and-place machines
Industrial robotics workcells
Process monitoring panels
Conveyor system status indication
Packaging and material handling equipment
