| Brand Name: | ONN |
| Model Number: | M3W |
| MOQ: | 1 |
| Price: | $17-22 |
| Delivery Time: | 5-9 working days |
| Payment Terms: | T/T |

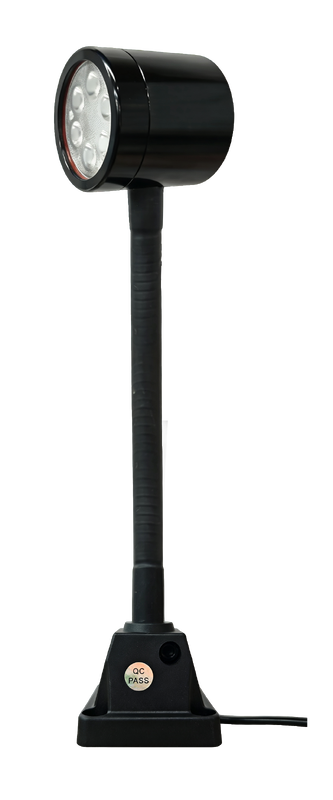

ONN‑M3T IP65 Flexible Gooseneck Machine Work Light | 360° Adjustable Metal Hose
ONN‑M3T is compact IP65 LED machine work light for CNC, engraving and EDM equipment. It adopts extruded aluminum profile, waterproof rubber strips and tempered glass for integrated heat dissipation. Equipped with robust aluminum lamp head and 360‑degree bendable spring‑steel gooseneck hose for free lighting‑angle adjustment. AC/DC24V input, 3W power, 398lm output, three CCT options. CE, RoHS, TUV, FCC certified, screw‑on installation, 2‑year factory warranty. Arm length can be customized.
Specifications
| Parameter | Specification |
|---|---|
| Model | ONN‑M3T |
| Power | 3W |
| Input Voltage | AC/DC24V |
| Luminous Flux | 398lm |
| CRI | Ra ≤80 |
| IP Rating | IP65 |
| Beam Angle | 40° |
| CCT Options | 2800‑3200K / 4000‑4500K / 6000‑6500K |
| Material | Aluminum alloy, engineering plastic, spring‑steel hose |
| LED Lifespan | 50,000 Hours |
| Working Environment | ‑20℃~45℃, Humidity 10%‑90% |
| Storage Environment | ‑20℃~60℃, Humidity 10%‑90% |
| Installation | Screw fixing |
| Wiring | Red = Positive(+), White = Negative(‑) |
| Certifications | CE, RoHS, TUV, FCC |
| Warranty | 2 Years |
Model Coding Table
Full Model Example: ONN‑M3T‑B‑1‑500‑3W
| Definition | Description |
|---|---|
| Model Series | Flexible gooseneck machine work light |
| Voltage | AC/DC24V |
| Color‑temperature code |
1=6000‑6500K 2=4000‑4500K 3=2800‑3200K |
| Arm length | 500 mm, custom length supported |
| Power | Rated power 3W |
CNC lathe, engraving machine, EDM spark machine, equipment assembly & repair local illumination
Package Info
| Packing Item | Details |
|---|---|
| Packing Material | Carton |
| Single Net Weight | 0.325 KG |
| Qty Per Carton | 20 PCS |
| Inner Box Size | 610×85×85 mm |
| Outer Carton Size | 620×350×440 mm |
| Custom Service | Custom gooseneck arm length & OEM label printing for bulk orders |
