LED Freezer Light
Created with Pixso. 3W - 15W Commercial Refrigeration LED Lighting IP54 Display Cabinet LED Light

3W - 15W Commercial Refrigeration LED Lighting IP54 Display Cabinet LED Light

Brand Name: led freezer light
Model Number: ONN-X1A
MOQ: 1
Price: $2.1-5.3
Delivery Time: 3-7 work days
Payment Terms: T/T
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Material:
Aluminum Alloy+PC
Input Voltage:
DC24V
IP Authentication:
IP54
Beam Angle:
120 Degree
Power:
3-15W
CRI:
80 Ra
Packaging Details:
1210mm. 96pcs/carton, NW. 14.88kg, GW17.4kg
Supply Ability:
>300,5-7 work days
Highlight:

15W Commercial Refrigeration LED Lighting

,

Commercial Refrigeration LED Lighting IP54

,

3W Display Cabinet LED Light

Product Description

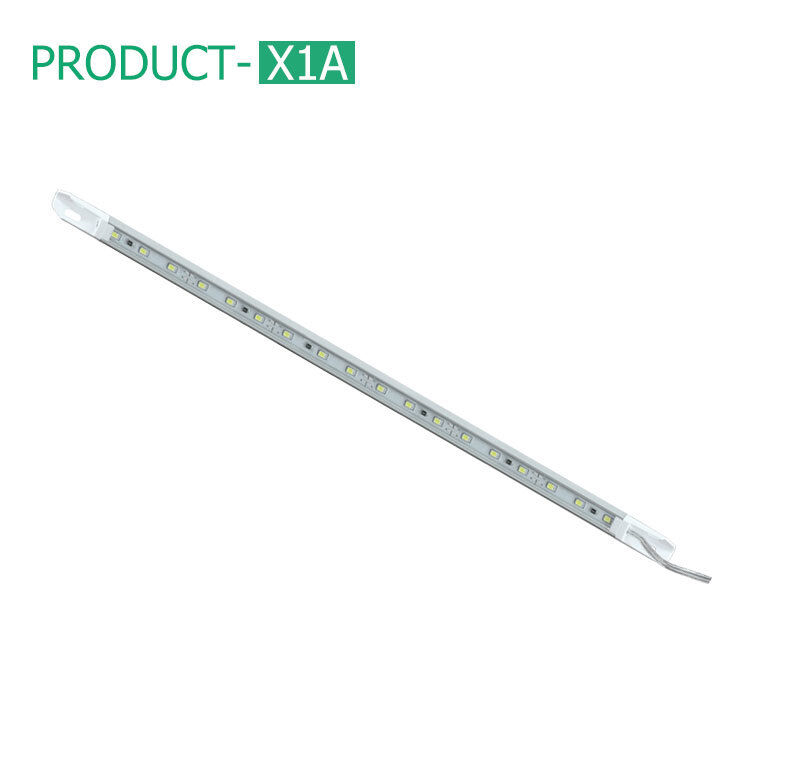

ONN-X1A Display Cabinet Led Light Led Freezer Light for Commercial Refrigeration Equipment showcase and Shelf Lighting



Product Overview



ONN-X1A dedicated linear LED lamp developed for all commercial refrigeration display equipment. Adopts integral extruded aluminum cuttable shell, universal interchange end caps to reduce spare parts inventory cost. IP53 anti-fog protection can stably run under low-temperature cold mist environment, flicker-free constant current light source without glare. Multiple fixed sizes and three color temperature options match beverage, fresh cake, jewelry different display demands. Fixed by stainless steel metal clips, simple assembly for cabinet manufacturers, freely trim lamp length to fit cabinet inner space, widely applied in supermarket vertical beverage cabinet, island freezer, ice cream machine and jewelry counter.


Quick Detail

  • Housing: Extruded aluminum alloy, cuttable design for size adjustment
  • End cap: Universal left & right interchangeable, easy stock management
  • Protection Grade: IP53 anti-cold mist, anti-dust
  • Input Voltage: A series DC12V / B series DC24V
  • CCT Selection: 4000-4500K Neutral White / 5500-6000K Cool White / Pink Special Tone
  • Luminous Efficiency: 80~90lm/W, Beam Angle 120°
  • LED Density: 60pcs SMD per meter
  • Surface Working Temp ≤60℃
  • Mount Method: Stainless steel metal clips fixed

Specification

Item Specification Data
Model ONN-X1A (DC12V / DC24V)
Shell Cuttable extruded aluminum alloy
End Cap Interchangeable left-right universal design
IP Grade IP53 Anti-mist & Dust Resistant
Input Voltage DC12V / DC24V Optional
Standard Sizes & Power 900(9.5W) / 1200(12W) / 1500(14W)
CCT Range 4000K / 5500-6000K / Pink
Luminous Efficiency 80~90lm/W
Beam Angle 120° Wide Angle
LED Density 60pcs/M SMD LED
Max Surface Temp ≤60℃
Mount Accessory Stainless steel metal clips
Standard Wire 0.15m bare wire
LED Lifespan 50,000 Hours
Working Temp -20℃ ~ 45℃
Certifications CE, RoHS
Warranty 2 Years



Application

Beverage freezer, ice cream machine, cake showcase, jewelry display counter

Lighting Display

3W - 15W Commercial Refrigeration LED Lighting IP54 Display Cabinet LED Light
